Περιγραφή
SPECIFICATIONS
Product Category:

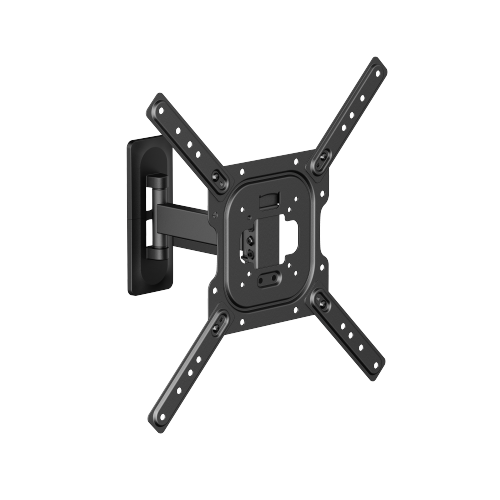

Full-motion TV Wall Mount
Rank:
Standard
Material:
Steel,Plastic
Metal Sheet Thickness:
VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (VESA Panel THK=0.071″ cold-rolled sheet,Wall Plate THK=0.12″ pickling sheet)
Pipe Size:
40x20x1.5mm (1.6″x0.79″x0.059″)
Surface Finish:
Powder Coating
Color:
Fine Texture Black

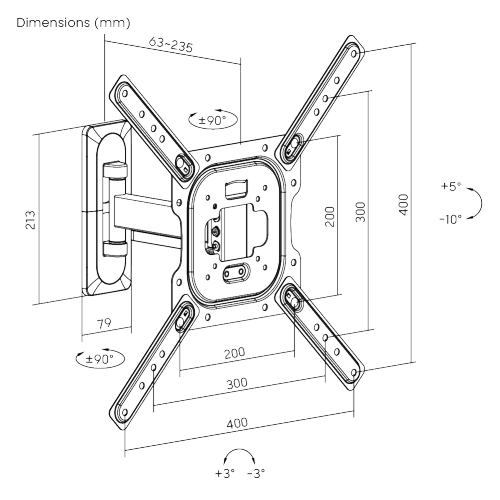

Dimensions:
235x445x445mm (9.3″x17.5″x17.5″)
Fit Screen Size:
23″-55″
Fit Curved TV:
Yes
Mounting Hole Pattern:
VESA Only
VESA Compatible:
75×75,100×100,200×100,200×200,300×200,400×200,300×300,400×300,400×400
Max. Mounting Hole:
400×400
Weight Capacity:
35kg (77lbs)
Strength Tested:
4 Times Approved
Profile:
63~235mm (2.5″~9.3″)

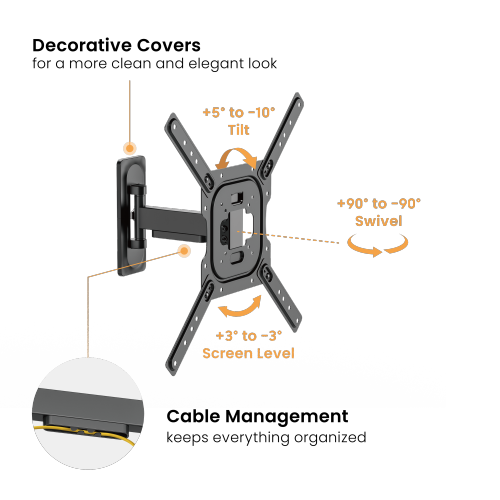

Tilt Range:
＋5°～-10°
Swivel Range:
+90°~-90°
Screen Level:
+3°~-3°
Screen Freely Tilting:
No
Installation:
Solid Wall,Single Stud
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
Cable Management:
Yes
Anti-theft:
No
Bubble Level:
No
Accessory Kit Package:
Normal/Ziplock Polybag,Compartment Polybag
