Product Features:

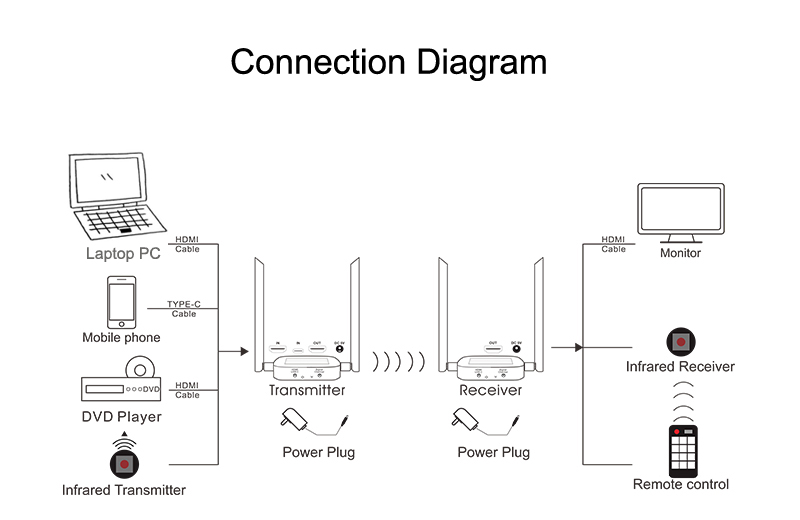

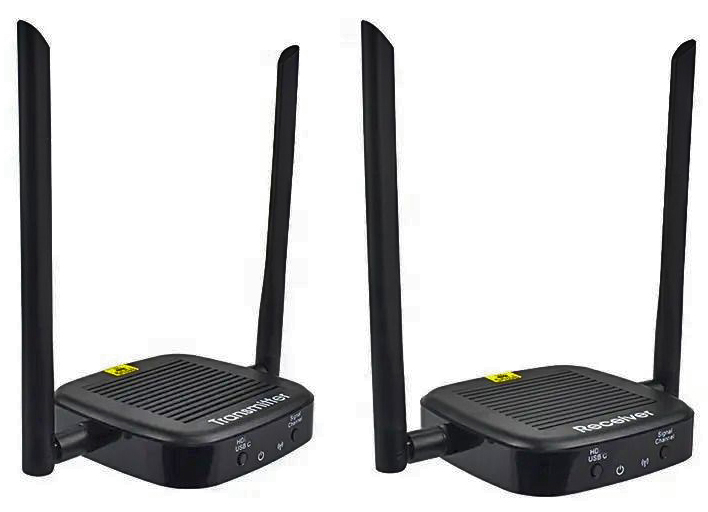

Transmission of HDMI Video and Audio signals through a 5.8G wireless module

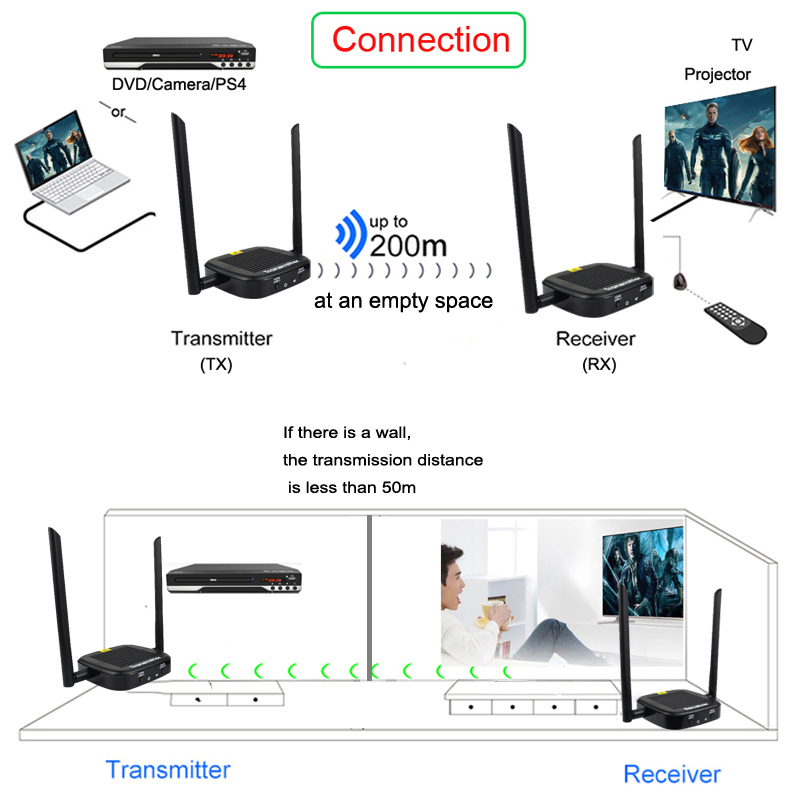

Transmission distance in the open environment up to 200 meters.
Support infrared return control
Support TYPE-C input interface
Support HDMI input interface
Support transmitter loop output
HD video signal resolution up to 1920*1080P@60Hz
Compatible with HDMI 1.3
Use international standard H.264 format to compress and decompress video, effectively improve transmission efficiency and ensure smooth playback.
HDCP 1.2 compliant – high bandwidth digital content protection technology.
Ability to automatically identify and configure various display modes.
Built-in automatic equalization system, the picture is smooth, clear and stable
Easy to install, plug and play, no need to set.
Product Specifications
Support agreement…………………….HDMI 1.3
HDCP 1.2 Compression format………………………………………..H.264
Maximum Support Resolution………1920X1080P@60Hz
Interface……………………………………………………..HDMI-A RF
Power Consumption………………………………….23dbm
Signal Direction………………………………………Unidirection
Wireless Frequency………………………………………5.8GHz
IR transmitter frequency……………………………..20-60KHz
Operation Temperature………………………….-5℃ ~ +70℃
Storage Temperature………………………………..-20~+60℃
Working humidity…………10~90%RH(No condensation)
Storage humidity……………5~95%RH(No condensation)
Maximum Power Consumption……..Transmitter=4.75 W, Receiver=3 W
Dimensions…………………………..100x100x26mm(LxWxH Not includes antenna)
Gross Weight…………………………………………………..250g Material………………….Plastic，Aluminium alloy
