SPECIFICATIONS
Product Category:

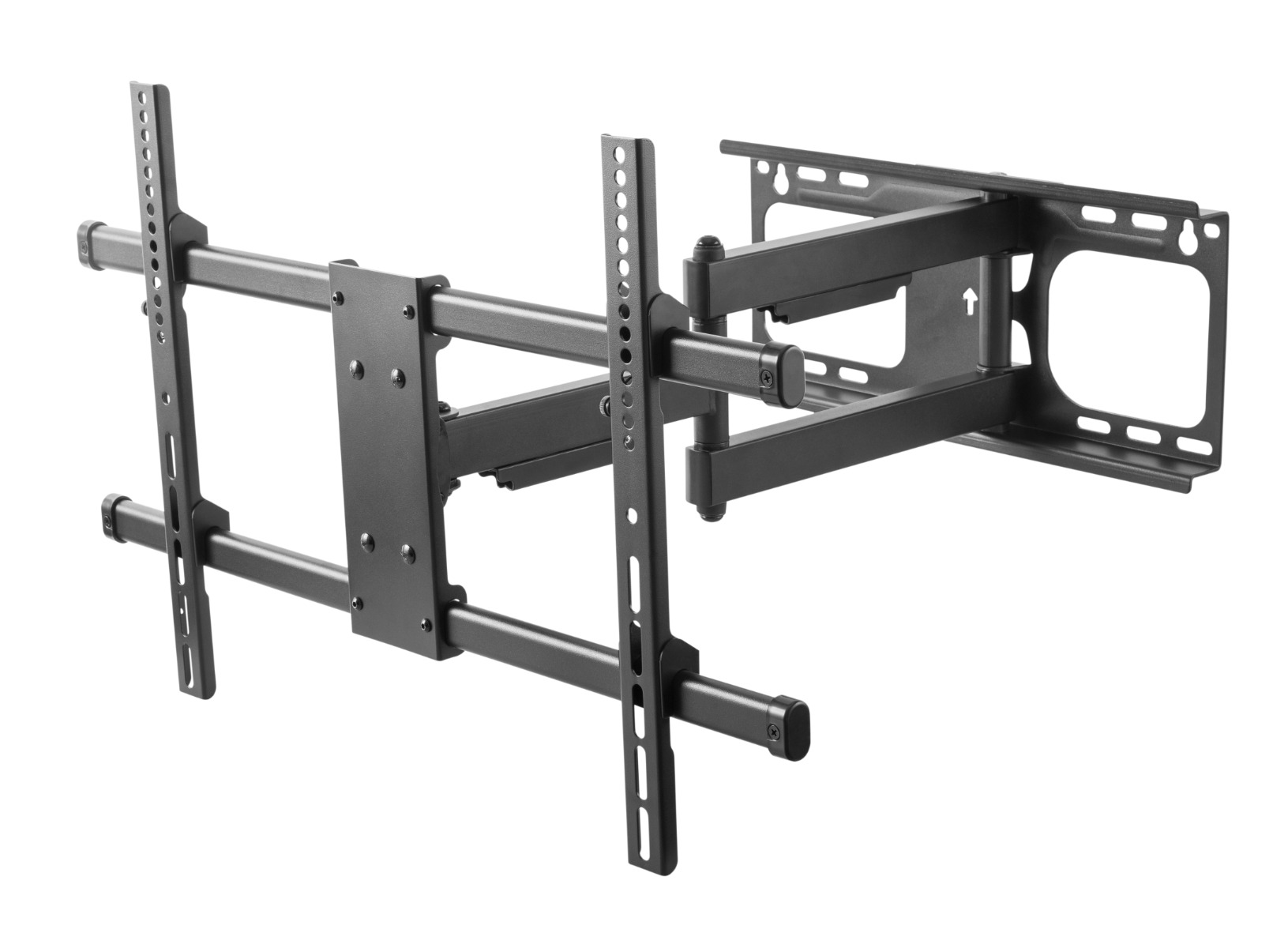

Full-motion TV Wall Mount
Rank:
Standard
Material:
Steel
Metal Sheet Thickness:
Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,Wall Plate THK=0.12″ pickling sheet)
Pipe Size:
40x25x1.5mm,40x20x1.5mm (1.6″x0.98″x0.059″,1.6″x0.79″x0.059″)
Surface Finish:
Powder Coating
Color:
Fine Texture Black

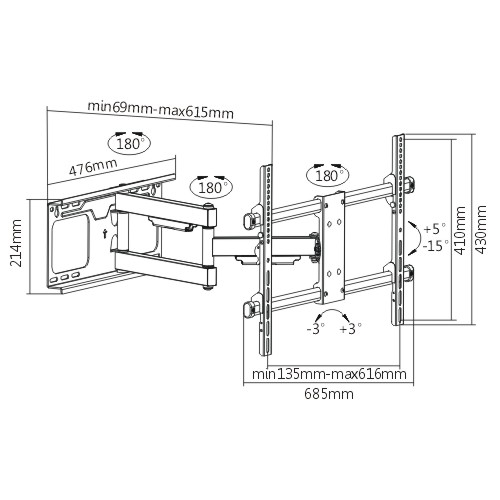

Dimensions:
615x685x430mm (24.2″x27″x16.9″)
Fit Screen Size:
37″-70″
Fit Curved TV:
Yes
Mounting Hole Pattern :
VESA & Universal
VESA Compatible:
200×200,400×200,300×300,400×400,600×400
Max. Mounting Hole:
600×400
Weight Capacity:
60kg (132lbs)
Strength Tested:
4 Times Approved
Profile:
69~615mm (2.7″~24.2″)

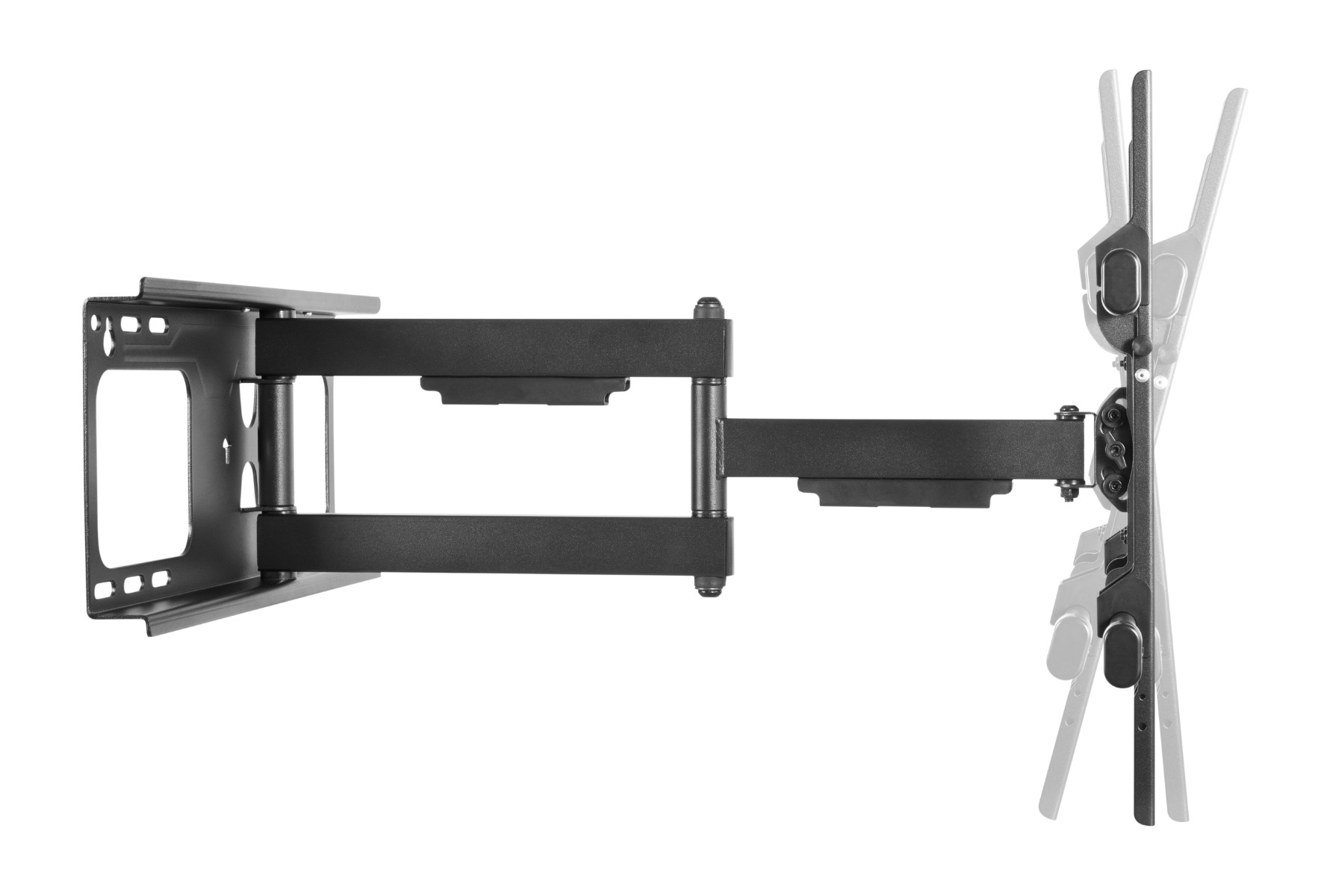

Tilt Range:
＋5°～-15°
Swivel Range:
+90°~-90°
Screen Level:
+3°~-3°
Screen Freely Tilting:
Yes
Installation:
Solid Wall,Double Stud(406mm/450mm)
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate

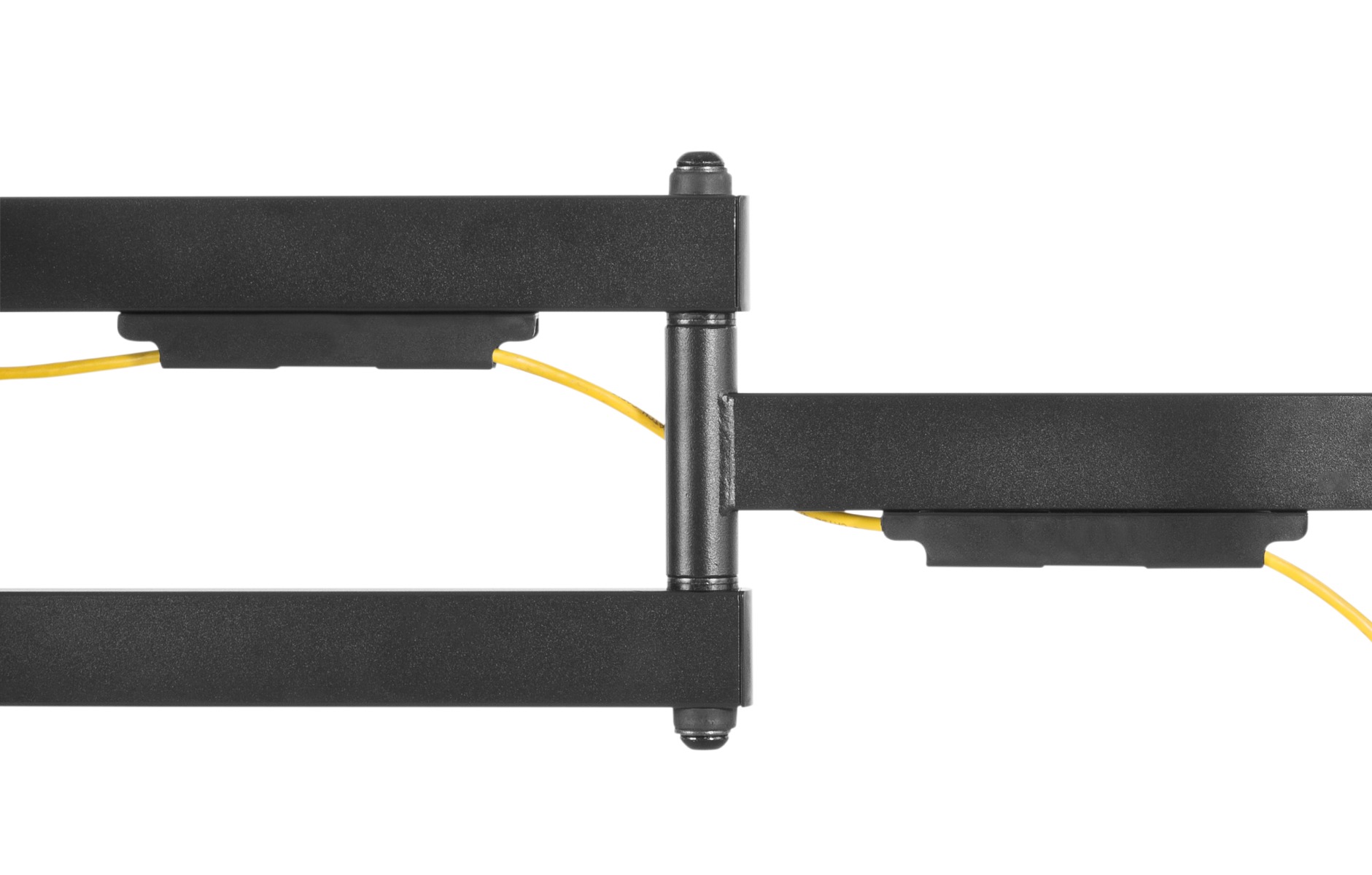

Cable Management:
Yes
Anti-theft:
No
Bubble Level:
Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:
Normal/Ziplock Polybag,Compartment Polybag
Certification:
CA 65
