FEATURES

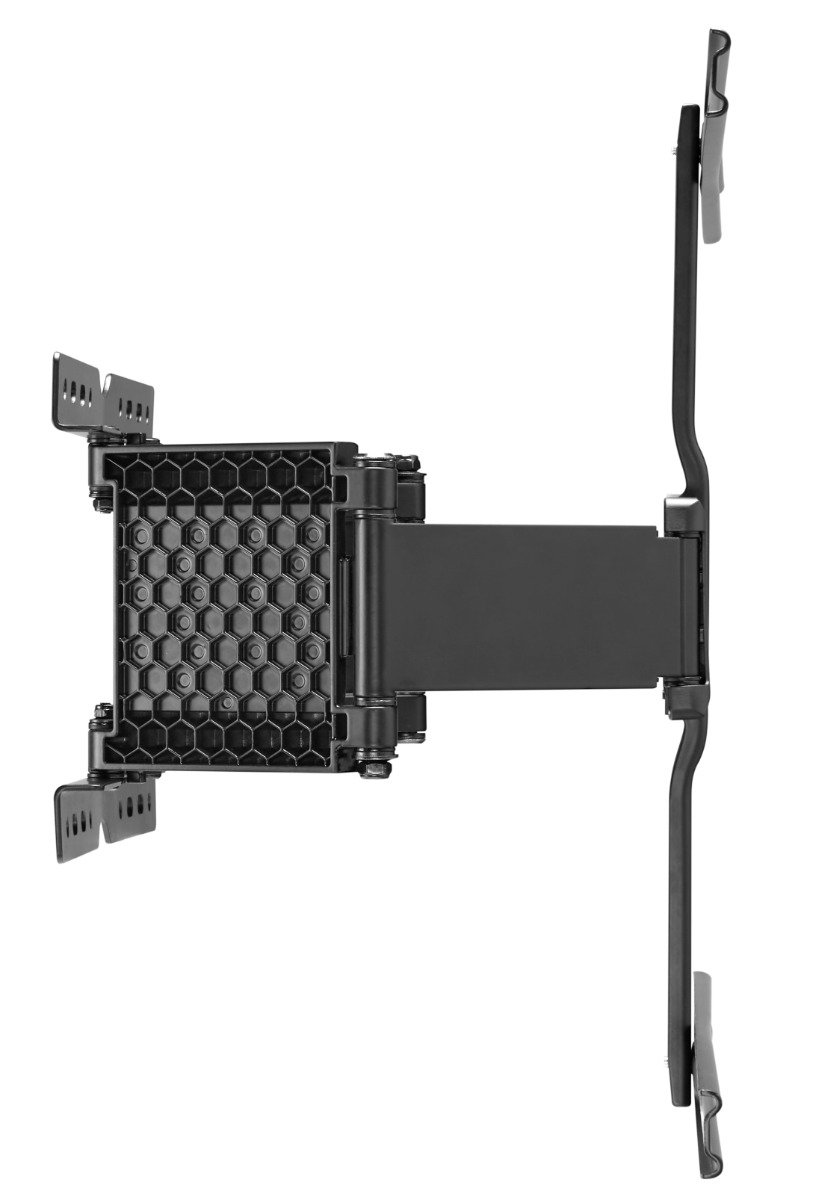

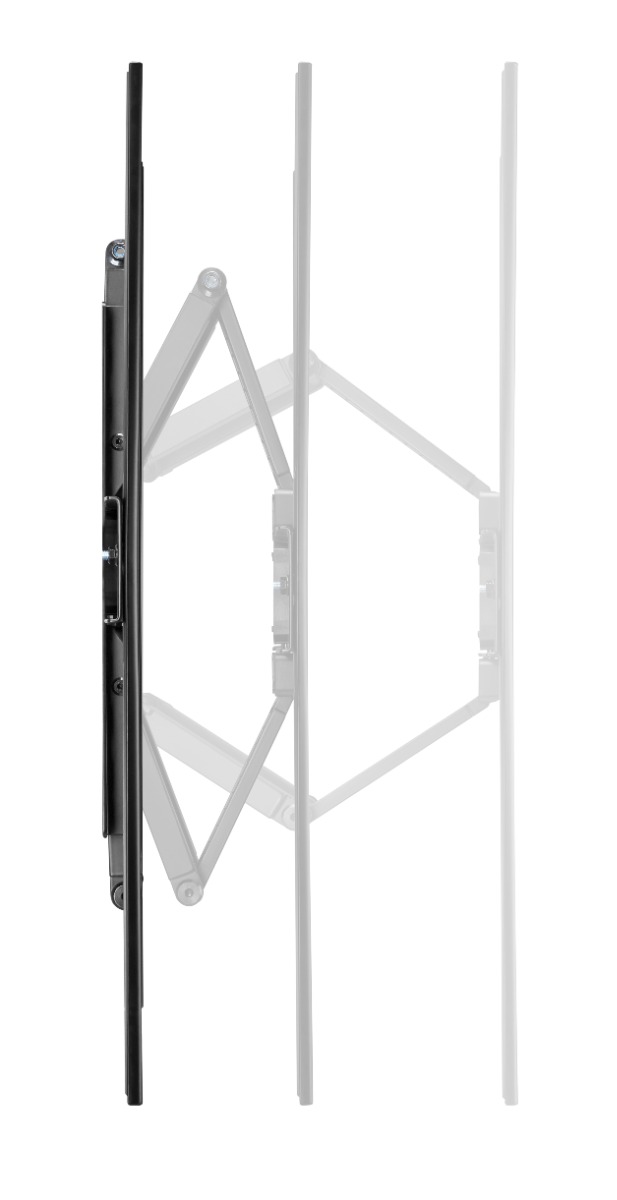

●Folding Design: saves space (keeping the screen and arm out of the way when not in use)

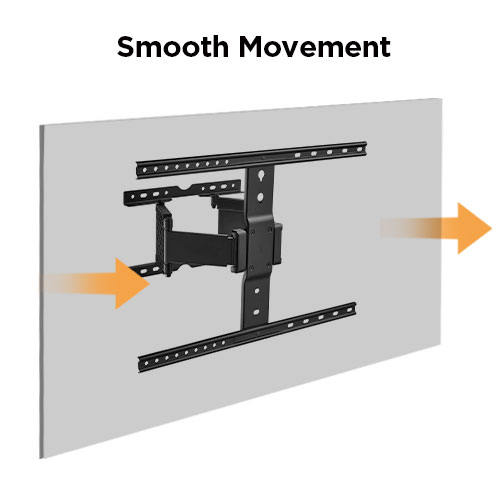

●Free-tilting & Swiveling Design: for multiple TV viewing angles

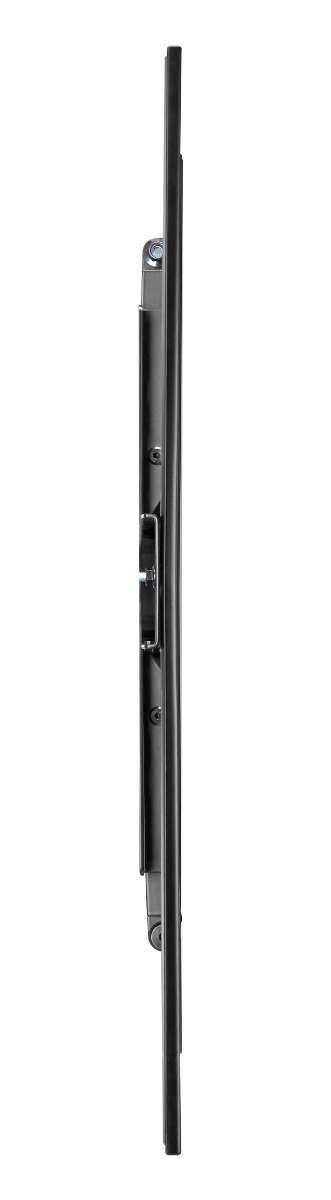

●Ultra-slim design
SPECIFICATIONS
SPECIFICATIONS
Product Category:

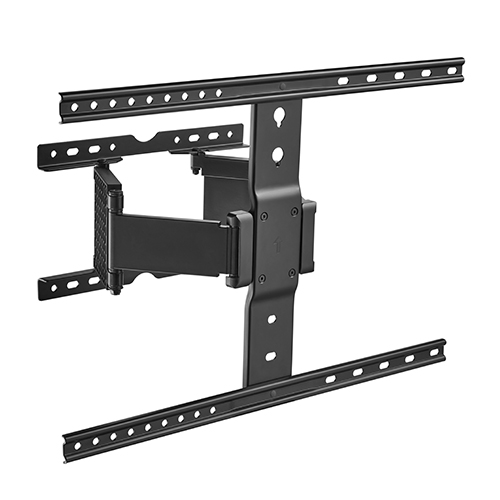

Full-motion TV Wall Mount
Rank:
Standard
Material:
Aluminum,Steel,Plastic
Metal Sheet Thickness:
VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (VESA Panel THK=0.098″ pickling sheet,Wall Plate THK=0.12″ pickling sheet)
Surface Finish:
Powder Coating
Color:
Matte White,Matte Black

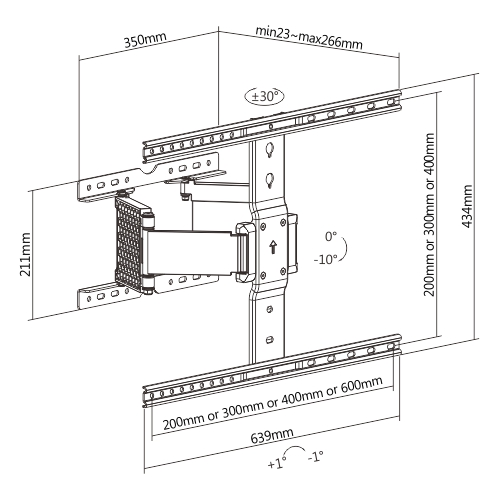

Dimensions:
266x639x434mm (10.5″x25.2″x17.1″)
Fit Screen Size:
37″-90″
Fit Curved TV:
Yes
Mounting Hole Pattern :
VESA Only
VESA Compatible:
200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,400×400,600×300,600×400
Max. Mounting Hole:
600×400
Weight Capacity:
50kg (110lbs)
Strength Tested:
4 Times Approved

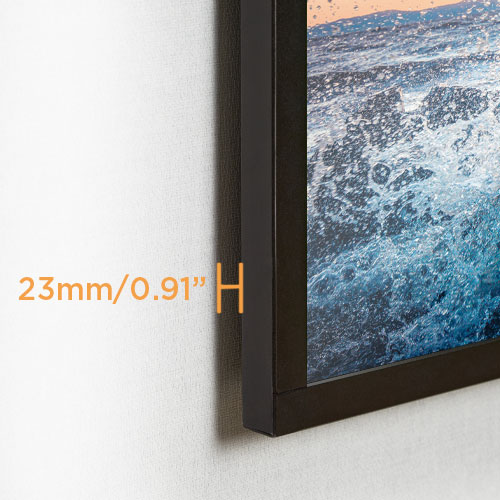

Profile:
23~266mm (0.91″~10.5″)
Tilt Range:
0°~-10°
Swivel Range:
+30°~-30°
Screen Level:
+1°~-1°
Screen Freely Tilting:
Yes
Installation:
Solid Wall
Panel Type:
Detachable Panel
Wall Plate Type:
Fixed Wall Plate
Direction Indicator:
Yes
Cable Management:
No
Anti-theft:
No
Bubble Level:
Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:
Normal/Ziplock Polybag,Compartment Polybag
Silk Screen:
No silkscreen printing area
